Category | 6U CPCI |
Dissipate heat | Conduction |
PlatForm & Chipset | Broadwell,Intel? Xeon? D |
Standard Configuration CPU | Intel? Xeon? Processor D-1559 |
C/T | 12C/24T |
Base / Turbo Frequency | 1.5GHz / 2.1GHz |
CPU TDP | 45W |
Memory | Onboard 16G + 1*SODIMM |
SSD | Onboard 1* 2.5" SATA connector |

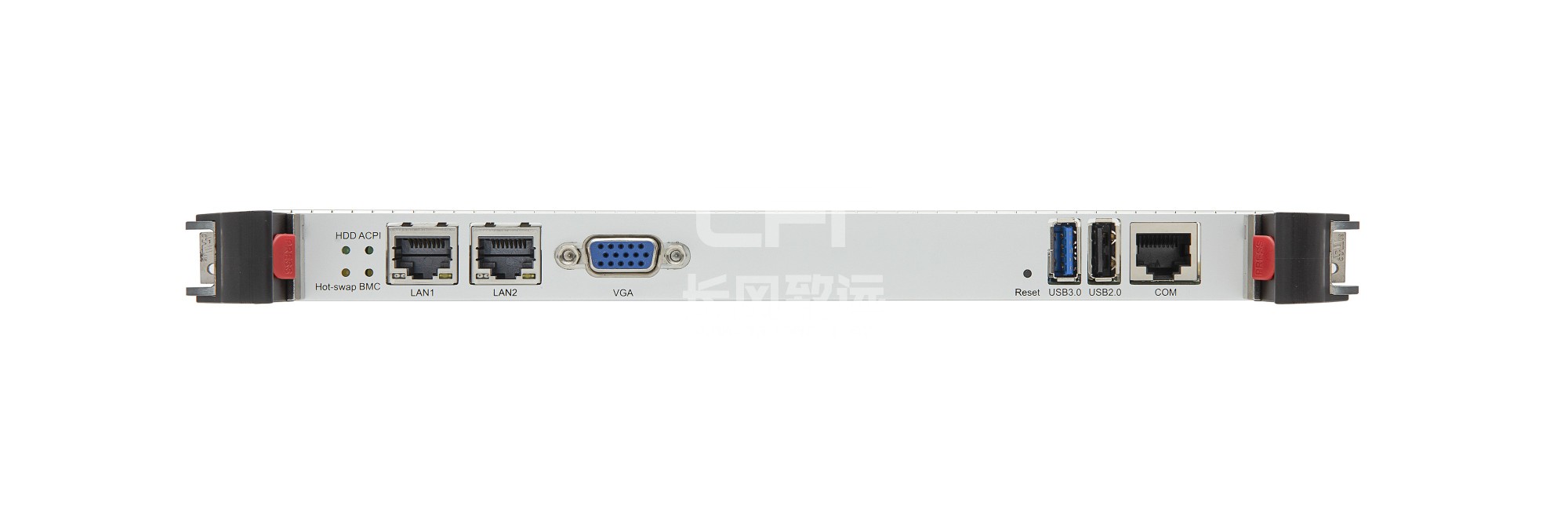

Front I/O | 1*USB3.0/2*GBE/1*VGA/1* RS232（RJ45）/1*USB2.0 |
Remarks | XEON-D |
CPCI Connector | J1: 32-bit PCI local bus J2: 64-bit PCI local bus J3: 2*GbE/1*PCIe x16 Gen3 Support J4: RTM area/1*GbE/2*SATA/1*PCIe x4 J5: RTM area/1*VGA/4*USB2.0/2*USB3.0/2*SATA4*RS232/422/ |
