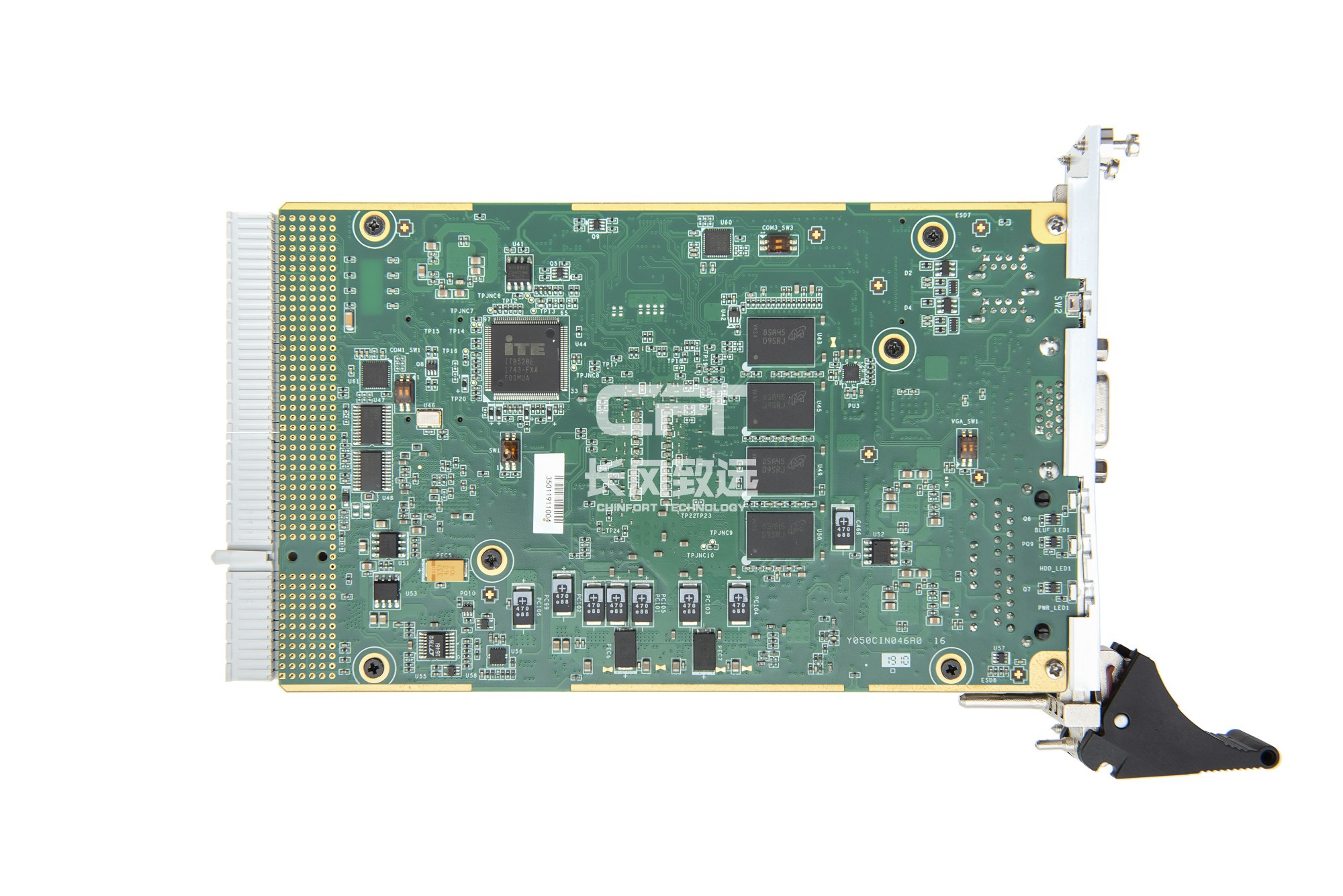

Category | 3U CPCI |
Dissipate heat | Air |
PlatForm & Chipset | Skylake U |
Standard Configuration CPU | Intel? Core? i7-6600U Processor |
C/T | 2C/4T |
Base / Turbo Frequency | 2.6GHz / 3.4GHz |
CPU TDP | 15W |
Memory | Onboard 8G |

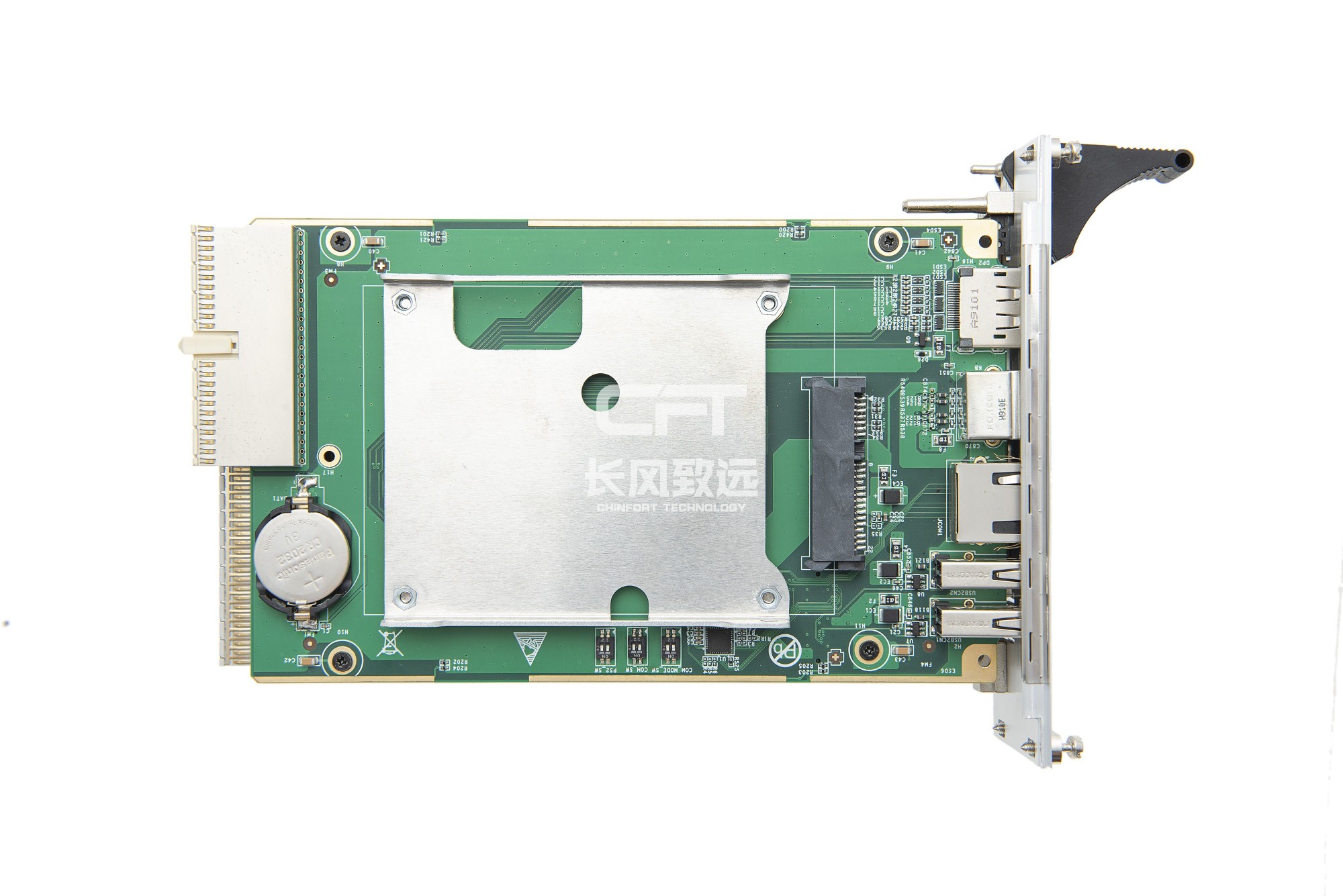

SSD | M.2(SATA/NVME PCIeX4) |

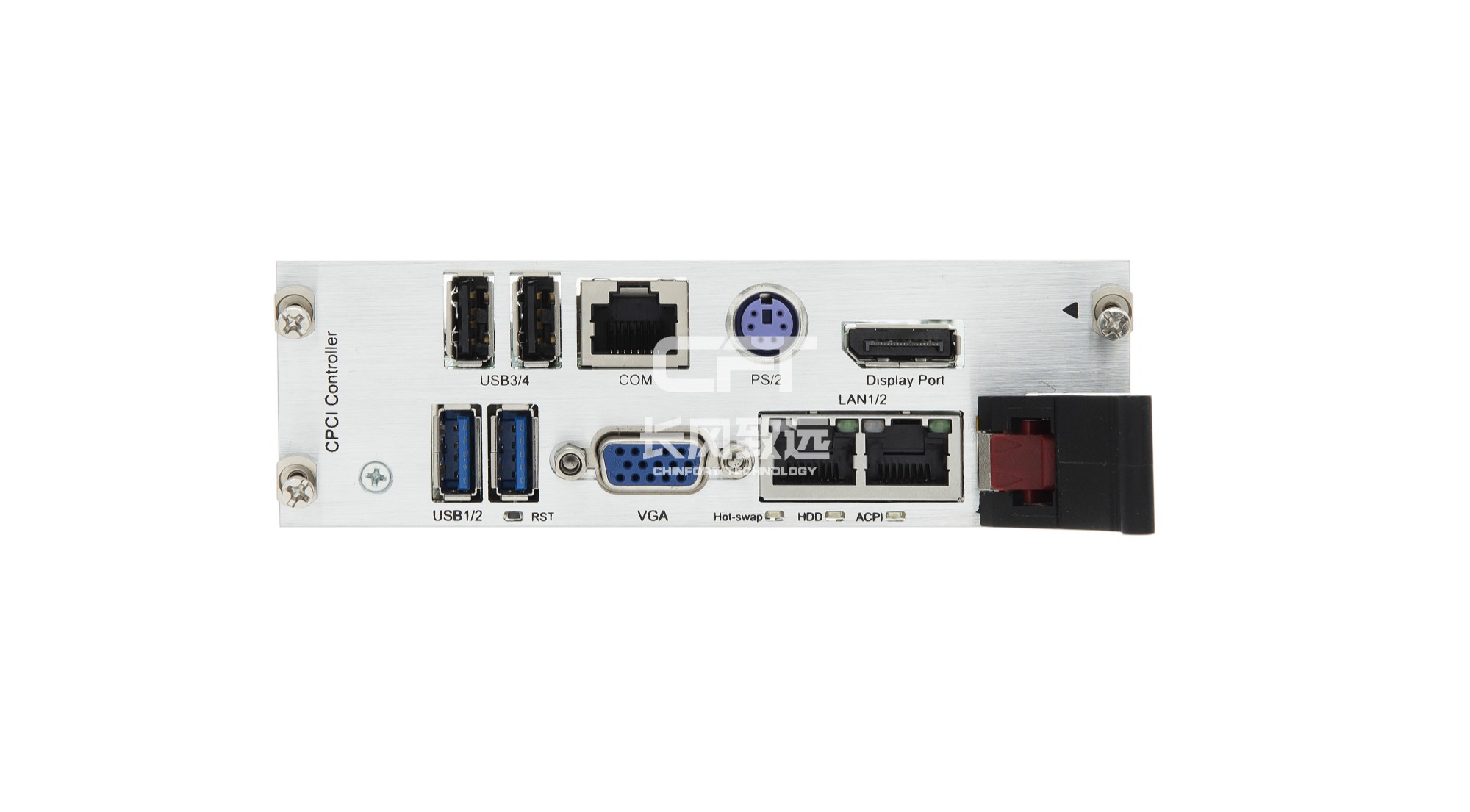

Remarks | 2*USB3.0/2*GBE/1*VGA/1*RJ45 RS232, 1*DP, 2*USB,1*PS/2 |
CPCI Connector | J1: 32-bit PCI local bus (33MHz) J2: 1*PCI / 1*GBE/1*PS/2(Switch with 8HP)/1*VGA/3*USB2.0/1* |
